EPEVER MPPT Solar Charge Controller 40A 12V/24V Tracer4210AN-G3 + Remote Meter MT52 +Temp Senosr RTS for Solar Panel Charger Regulator with LCD Display (MPPT 40A+MT52+RTS)

EPever MPPT Charge Controller 40A Tracer4210AN + MT52 Remote Meter+ Temp Sensor Cable Features: Ultra-fast tracking speed and guaranteed tracking efficiency Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time Compatible with lead-acid and lithium-ion batteries Common negative grounding design Rated charge current:40A Max.PV input power: 12V/520W,24V/1040W (12V/24V Auto Work) Battery voltage range: 8V~32V Max.PV open circuit voltage: 100VDC Terminal: 6AWG(16mm2 ) Dimension: 252*180*63mm Net weight: 1.65kg Electronic protections PV Over Current/power PV Short Circuit PV Reverse Polarity Night Reverse Charging Battery Reverse Polarity Battery Over Voltage Battery Over Discharge Battery Overheating Controller Overheating ★ Lithium Battery Low Temperature Load Short Circuit , Load Overload TVS High Voltage Transients MT-52 Features Automatic identify the controller, and display relevant parameter data Large-screen informative LCD displays all the operating data and system working status Simple and convenient operation Real-time alarm of failure information Longer communication distance based on RS485 Diversified load control modes : Manual Control, Light ON/OFF, Light ON+ Timer, Time Control Battery type selection: Gel, sealed, flooded ,LiFePO4, Li(NiCoMn)O2 and User(programable) Programmable parameters Energy statistics display function Package List: 1 x Tracer 4210AN Solar Charge Controller 1x Temp sensor for controller ( RT-MF58R47K3.81A) 1 x Remote Meter MT52+ 1 x RS485 Cable 1 x Temp sensor cable for battery (RTS300R47K3.81A) 2 x User Manual

• EPEVER 40A MPPT Solar Charge Controller Tracer4210AN-G3+ MT52 Remote Meter + Temp Sensor Cable RTS300R47K3.81A . 40Amp Controller 12V/24V Auto Work, Max. PV input power: 520W @12V battery or 1040W @24V battery. Max PV 100V. Common Negative grounding, Compatible with lead-acid and lithium-ion type batteries. More details watch video Tutorials
• 40Amp MPPT Charge Controller Tracking efficiency : ≥99.5%, Max. conversion efficiency 98% ,12V/24V Automatic Work System Voltage Recognition Auto-saving function: two voltage disconnect levels, Charging power and current limitation function, Independent voltage regulation constant voltage output function
• Support Lead-acid: Sealed (default), Gel, AGM, Flooded, User(9～17V@12V; 18～34V@ 24V) & Lithium: LiFePO4 (4s/12V; 8s/24V), Li (NiCoMn)O2 (3s/12V; 6s/24V), User (9～34V) & User-defined. Battery temperature compensation function（only for Lead-acid battery) , Overheating power reduction function

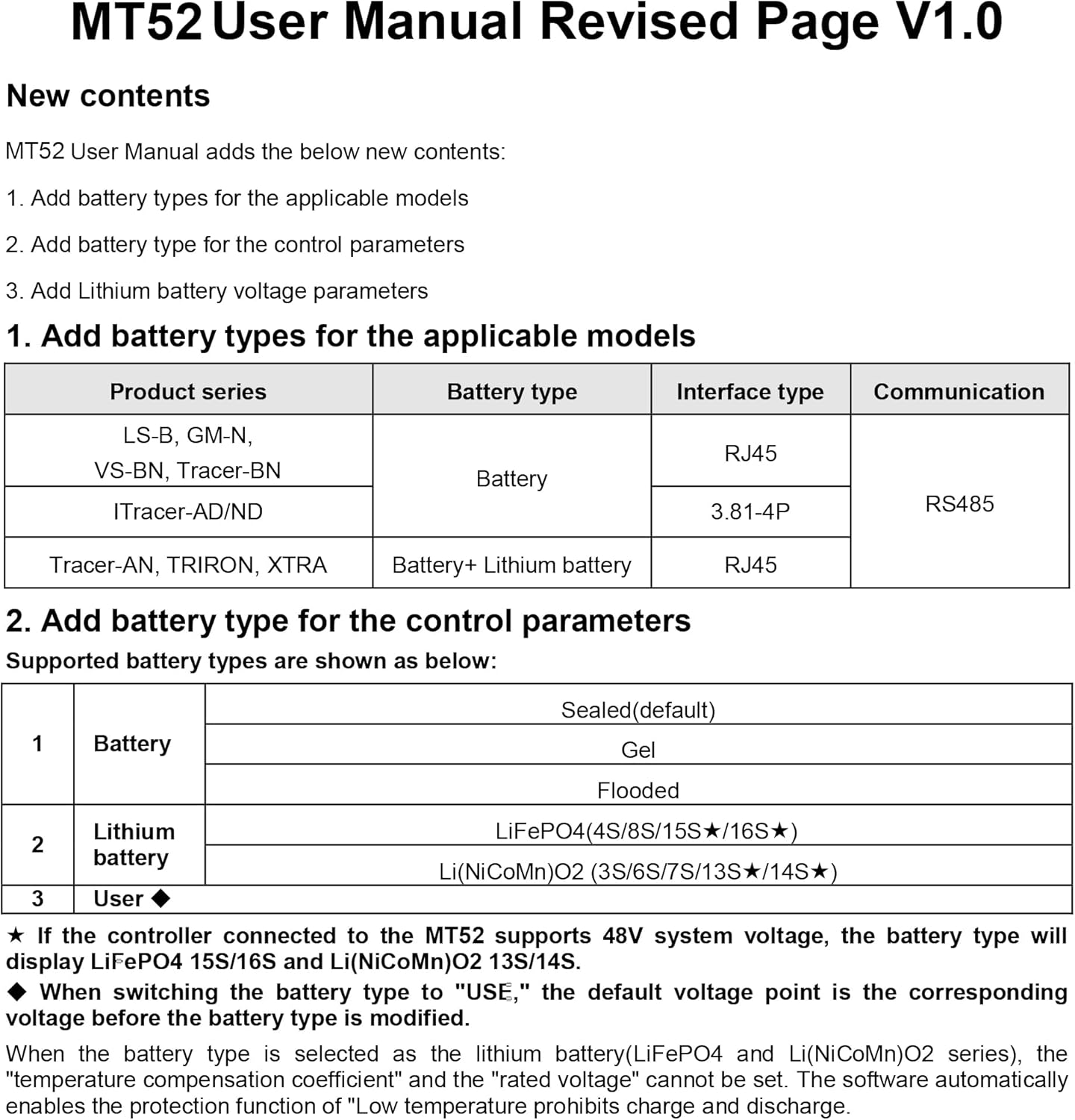

• MT52 Remote Meter Automatic identify the controller, and display relevant parameter data , Diversified load control modes : Manual Control, Light ON/OFF, Light ON+ Timer, Time Control . RTS Temp sensor acquisition of battery(or controller) temperature for undertaking temperature compensation of control parameters, extend the batteries life +1 years or more
• Upgraded version controller can choose Lead-Acid and Li-ion types by controller buttons directly , More details parameters setting by EPEVER accessories such as MT50/MT52, BLE/WiFi Adapter , eLOG01 ,PC software
