Go Kart Wiring Harness with Forward Reverse Switch 24V 500W Brush Motor Controller Foot Pedal for Electric Bicycle ATV UTV Drift Trike Golf Cart Quad Buggy Dune Moped Lawn Mower 4 Wheeler Tricycle
4.8 (132 items)
Limited Time SaleUS$33.67 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215382862 | Release Date | 2026/04/12 | List Price | US$22.45 | Model Number | 215382862 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

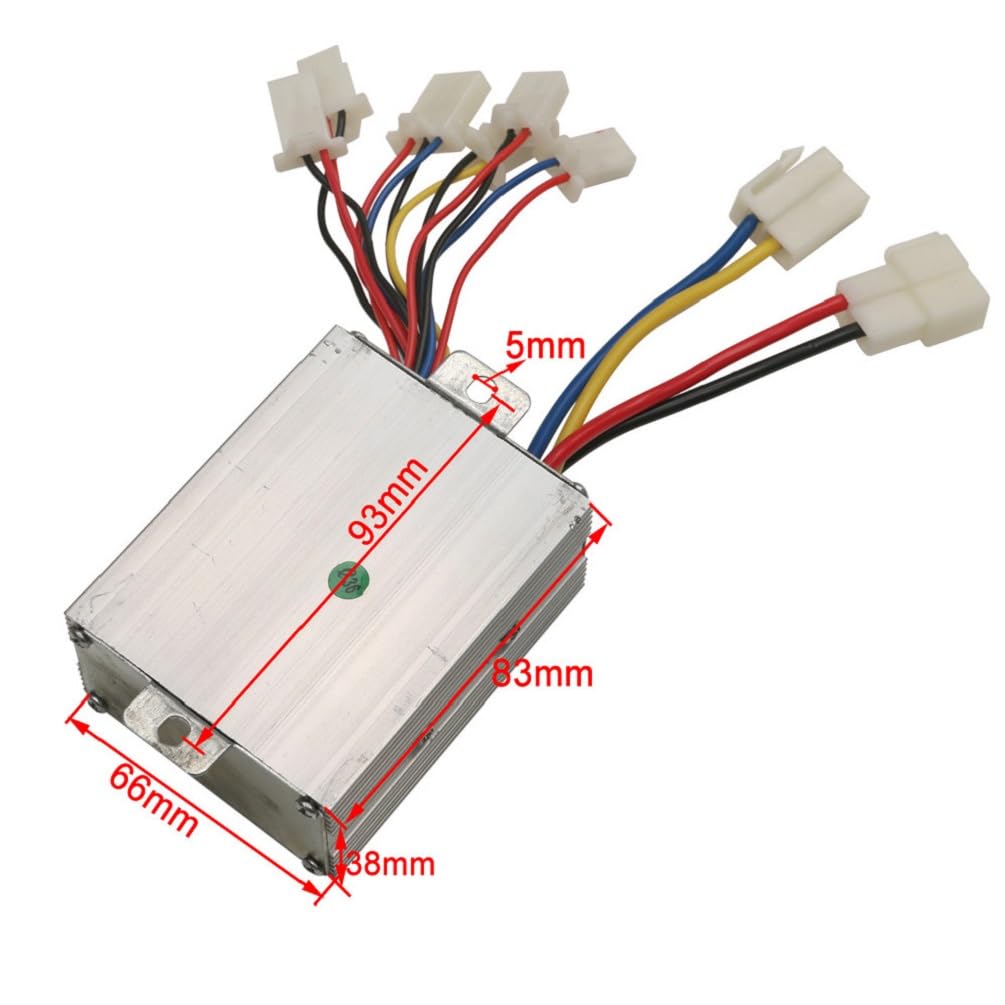

DC 24V 500W Brushed Controller: Rated Voltage: 24Volts Rated power: 500 watts Under Voltage Protection: 20V±0.5V Current Limit:28±1A Usable Motor: 24V 500 Watts Speed Regulator 1-4 V(Throttle ) Operating Conditions: -25--45 Length: 93mm/ 3.66 inch Width: 66mm/ 2.6 inch Heigth: 38mm/ 1.5 inch Function: This item Suitable for electric bike and scooter This is brush motor controller Plug : 1.Red & Black (large cable) : Battery connections 2.Yellow & Blue : Motor connections 3.Red & Blue : Key Switch(power lock) (If there is no power door locks,red connection to blue) 4.Yellow & black : brake 5.Red & Yellow: Brake light 6.Red&Black(small cable) : indicator light 7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle ) (Red:+5v,Black: - ,Blue :Signal Wire) 8.Red & Black (small cable): Charger Forward Reverse Switch: Condition: brand new Color: black Material: metal Current : 10A Fit Voltage: 12V/36V/48V/60V/72V/84V/96V 3 Position Switch: Forward, backward, stop Height: 78mm (3.07 inch) Width: 58mm (2.28 inch) Application: fits for the tricycle elderly scooter, Applied to the motor power switch, change the motor forward or reverse Universal use on: Electric Scooter Go Kart E Bike ATV UTV Drift Trike Golf Cart Quad Buggy Dune Moped Four Wheeler Tricycle wheelchair Forward Wire Harness: Condition: brand new Material: metal, plastic Color: multi Connector: 10 Use on Reverse Forward Switch of brushed motor Foot Pedal: Condition: brand new Color: black Material: metal Input Voltage: 5V Output 0-4.5V Throttle Physical Range: 30 Degrees Output format: positive control Length: 151mm (5.94 inch) Width: 40mm (1.57 inch) Height: 130mm (5.12 inch) Bolt hole size: 6mm (0.24 inch) Plug: 3 pins Metal hall effect spring loaded foot pedal Package includes: 1 x DC 24V 500W Brushed Electric Motor Speed Controller 1 x Wiring Harness 1 x Forward Reverse Switch 1 x Foot Pedal
- ✅High Efficiency 24V 500W Brush Motor Controller: Features under voltage protection at 20V±0.5V, ensuring the safety and longevity of your motor; Equipped with a current limit of 28±1A, providing consistent and secure power regulation
- ✅Knob Switch with 3 Gears: Features 3 position switch for Forward, Backward, and Stop functions, ideal for motor power control; On/Off Forward/Backward Switch compatible with 12V/36V/48V/60V/72V/84V/96V systems
- ✅Wiring Harness: Use on Reverse Forward Switch of brushed motor, fits 24v 36v 48v Brush motor and speed controller
- ✅Wide Applications: Suitable for Electric Bicycles, Scooters, Choppers, Motorcycles, ATVs, UTVs, Go Karts, Golf Carts, Buggies, Quads, Lawn Mowers, Drift Trikes, Tricycles, 4 Wheelers, Mini Bikes, Pit Bikes, Trail Dirt Bikes, Monkey Bikes, and Pocket Bikes
- ✅Package Includes: 1 x DC 24V 500W Brushed Electric Motor Speed Controller; 1 x Wiring Harness; 1 x Forward Reverse Switch; 1 x Foot Pedal
| Color | 3 |
|---|---|
| Model | Brushed motor controller connect wires |
| Brand Name | SUISUITONG |
| Contact Type | Normally Open |
| Manufacturer | suisuitong |
| Material Type | Metal, Plastic |
| Connector Type | Plug In |
| Current Rating | 28 Amps |
| Operation Mode | ON-OFF |
| Number of Items | 4 |
| Operating Voltage | 24 Volts |
| Included Components | 1pc wiring loom, 1pc controller, 1pc switch, 1pc pedal |
